Gasket Materials
Rubber Gasket Material
Selecting the Best Gasket Material
Gaskets are normally cut from a flat sheet material such as paper, rubber, silicone, cork, compressed sheet, neoprene, nitrile rubber, fiberglass, polytetrafluoroethylene (PTFE), among many others.
Gaskets are cut to size with or without bolt holes in various thicknesses and materials—whatever is suitable to the media, temperature, and pressures of the application—all of which factor into material selection.
Allstate Gasket stocks hundreds of grades of gasket materials—solid, closed cell, and open-cell rubbers, non-asbestos compressed fiber, food-grade materials, PTFE, EPDM, FKM, cork and cork blends, natural gum rubber, and many more.
Our experienced application and production specialists will gladly assist you in selecting the best material for your application. Tell us what kind of custom gasket you need.
Material Information - Bold Available Online
- Carbon Fiber Sheet
- Cloth Insert Rubber Sheet
- Cork & Neoprene Sheet
- Cork & Rubber Sheet
- Cork & Vegetable Fiber Sheet
- CSPE / Hypalon
- Expanded PTFE Sheet
- Fiberglass Cloth
- Fiberglass Tacky Cloth
- Flexible Graphite Sheet
- Food Grade EPDM Rubber / FDA Compliant Material
- Natural Cork Sheet
- Natural Gum Rubber
- Neoprene Cloth Insert Sheet
- Neoprene Nylon Cloth Insert Sheet
- Nitrile with Reinforcing Nylon Cloth Insert
- Open Cell Sponge
- Peroxide Cured EPDM
- Silicone w/Fiberglass Cloth Insert
- Silicone Sponge
- Red Silicone Rubber
- Neoprene Sheet
- RED RUBBER / SBR SHEET
- Vegetable Fiber Sheet
- Cork & Nitrile (Buna) Sheet
- Fluoroelastomer Sheet - FKM / FPM
- EPDM Rubber Sheet
- Nitrile / NBR / BUNA-N Sheet
- NSF / ANSI 61 EPDM Rubber
- Food Grade Nitrile / Buna-N - FDA Compliant Material
- Food Grade Neoprene / FDA Compliant Material
- General Purpose Beater-Add Gasket Paper
- Style 1500 Asbestos Free Compressed Sheet
- Closed Cell Sponge Rubber
- Virgin PTFE
Material Information
STYLE #1600 - High quality, non-asbestos, compressed sheet with graphite and carbon fiber construction. Nitrile binder. An excellent steam sheet. …
STYLE #1175 C.I. CLOTH INSERT RUBBER SHEET - SBR with 4 oz. reinforcing polyester fabric embedded. Available by the foot …
STYLE #1159 CORK & NEOPRENE SHEET - An economical highly compressible material that is also very resilient. Neoprene cork sheet …
STYLE #1166 CORK & SYNTHETIC RUBBER SHEET - An economical, highly compressible material that is also very resilient. Synthetic rubber …
STYLE #1167 VEGETABLE FIBER & CORK SHEET - An economical, highly compressible material that is also very resilient. Offers excellent …
STYLE #1185 HYPALON / CSPE - A synthetic thermoset rubber commonly used for waterproofing and other applications. Similar to neoprene …
STYLE #1199 EXPANDED PTFE SHEET - 100% pure expanded PTFE sheet with a microporous fibrous structure and unique mechanical properties. …
STYLE #1170 FIBERGLASS SHEET - 100% woven fiberglass yarn - texturized cloth. A popular asbestos substitute offering very good abrasion …
STYLE #1171 FIBERGLASS TACKY CLOTH - Made from woven carded-glass cloth with both sides coated with a heat-resistant binder. Designed …
STYLE #1000 FLEXIBLE GRAPHITE - Flexible graphite is suitable for water, steam, acids, alkalies, gases, oils, and solvents. Offers excellent …
STYLE #1189 EPDM - White Food Grade / FDA Compliant. Provides very good abrasion resistance and is resistant to oily …
STYLE #1168 NATURAL CORK SHEET - When you want cork, nothing else will do. An economical, all-purpose gasket material used …
STYLE #1200 NATURAL GUM RUBBER - FDA compliant material designed for food, beverage, pharmaceutical, and cosmetic applications. Low volatile and …
STYLE #1275 NEOPRENE with REINFORCING CLOTH - Diaphragm insert nitrile sheets are elastic, strong, and abrasion-resistant. Reinforced rubber combines the …
STYLE #1206 NEOPRENE with NYLON REINFORCING CLOTH - A high-strength polymer 14.5 oz. nylon fabric is used to reinforce this …
STYLE #1208 NITRILE with NYLON REINFORCING CLOTH - Diaphragm insert nitrile sheets are elastic, strong, and abrasion-resistant. Reinforced rubber combines …
STYLE #1644 OPEN CELL SPONGE - A soft, flexible, and highly durable sponge. This open cell foam offers excellent thermal …
STYLE #1188 PEROXIDE CURED EPDM SHEET - Peroxide curing improves heat performance and material stability. Commonly used in water, food, …
STYLE #1117 SILICONE w/FIBERGLASS CLOTH INSERT - Fiberglass base fabric impregnated and coated with silicone rubber. Offers excellent dimensional stability, …
STYLE #1110 SILICONE SPONGE - Rugged red-orange silicone sponge with excellent stability over a wide temperature range and general chemical …
STYLE #1115 SOLID SILICONE SHEET - Low volatile, peroxide-free. Extended shelf life - greater than natural or synthetic rubbers.
STYLE #1119 NEOPRENE SHEET - Neoprene resists degradation from sun, ozone and weather and performs well with oils and chemicals. …
A general service SBR rubber compound of excellent quality. This heat resistant material has been calendared and vulcanized under strictest …
STYLE #1165 VEGETABLE FIBER - Can bend around a rod with a diameter of twice the thickness of the material …
STYLE #1169 CORK & NITRILE (BUNA-N) SHEET - A blend of Cork and Nitrile Rubber (also known as Buna-N). Very …
STYLE #1184 FKM / FLUOROELASTOMER(VITON) - Excellent heat stability and resistance to fuels and chemicals.
STYLE #1187 EPDM - Excellent resistance to ozone, UV / sunlight - great for outdoor applications. Long service life. Ideal …
STYLE #1190 NITRILE / BUNA-N - Nitrile / NBR Rubber (often referred to as buna-N rubber or perbunan) is the …

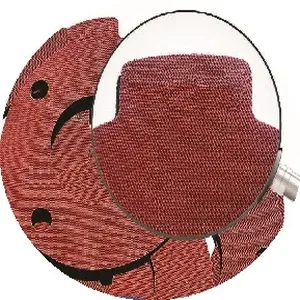

CERTIFIED NSF / ANSI 61-G & 372 | NSF-61 EPDM Rubber suitable for use in potable water applications. This specification …
STYLE #1195 NITRILE - White Food Grade / FDA Compliant - Nitrile rubber (Butadiene Acrylonitrile (NBR)) is recommended in all …
STYLE #1197 NEOPRENE - White Food Grade / FDA Compliant - FDA Compliant Neoprene demonstrates good abrasive qualities and resistance …
STYLE #1400-540 GENERAL PURPOSE GASKET PAPER - A non-asbestos homogeneous gasket material produced by the beater-addition process. This material is …
<p>Style 1500 Asbestos Free Compressed Sheet is a general service, compressed non-asbestos gasket material with many applications in process industries, …
STYLE #1640 CLOSED CELL SPONGE - A soft, flexible, and highly durable sponge, this closed cell foam offers excellent thermal …
STYLE #1180 VIRGIN PTFE - Non-stick, non-porous, and non-absorbent material that will not retain odors. Ideal for workbench tops, industrial …
