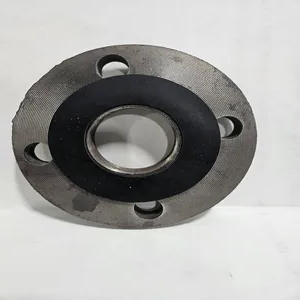

Viton - ANSI Pipe Flange Ring Gaskets

Viton - ANSI Pipe Flange Ring Gaskets

NSR Gaskets for various applications including industrial sealing solutions. These gaskets are suitable for service with ANSI 150# rated flanged connections and ANSI 300# rated flanged connections. Flange gaskets are used to seal and prevent leakage, absorb vibration, etc., around a pipe or piping fitting.

Filter Options

Available Options

# Flange Size Inner Diameter Outer Diameter Thickness Price Add to Cart
150 1 1-5/16 2-5/8 1/16 $1.68
150 2 2-3/8 4-1/8 1/16 $3.26
150 3 3-1/2 5-3/8 1/16 $5.56
150 4 4-1/2 6-7/8 1/16 $8.08
150 5 5-9/16 7-3/4 1/16 $10.17
150 6 6-5/8 8-3/4 1/16 $12.51
150 8 8-5/8 11 1/16 $20.58
150 10 10-3/4 13-3/8 1/16 $33.62
150 12 12-3/4 16-1/8 1/16 $44.49
300 1 1-5/16 2-7/8 1/16 $2.10
300 2 2-3/8 4-3/8 1/16 $4.07
300 3 3-1/2 5-7/8 1/16 $6.95
300 4 4-1/2 7-1/8 1/16 $10.10
300 5 5-9/16 8-1/2 1/16 $12.72
300 6 6-5/8 9-7/8 1/16 $15.64
300 8 8-5/8 12-1/8 1/16 $25.72
300 10 10-3/4 14-1/4 1/16 $42.02
300 12 12-3/4 16-5/8 1/16 $55.61
150 1 1-5/16 2-5/8 1/8 $2.34
150 2 2-3/8 4-1/8 1/8 $4.88
150 3 3-1/2 5-3/8 1/8 $8.62
150 4 4-1/2 6-7/8 1/8 $12.70
150 5 5-9/16 7-3/4 1/8 $16.02
150 6 6-5/8 8-3/4 1/8 $19.90
150 8 8-5/8 11 1/8 $32.84
150 10 10-3/4 13-3/8 1/8 $53.96
150 12 12-3/4 16-1/8 1/8 $71.80
300 1 1-5/16 2-7/8 1/8 $3.56
300 2 2-3/8 4-3/8 1/8 $6.92
300 3 3-1/2 5-7/8 1/8 $11.87
300 4 4-1/2 7-1/8 1/8 $18.47
300 5 5-9/16 8-1/2 1/8 $24.17
300 6 6-5/8 9-7/8 1/8 $37.83
300 8 8-5/8 12-1/8 1/8 $61.25
300 10 10-3/4 14-1/4 1/8 $71.78
300 12 12-3/4 16-5/8 1/8 $92.47
Types
  • Ring Flange Gaskets
  • 150# or 300#
Thickness
  • 1/16 inch
  • 1/8 inch
Compliance
ANSI 16.5
