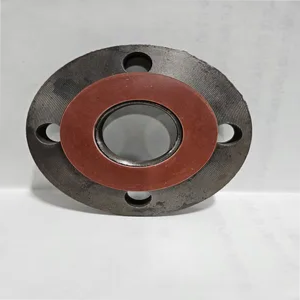

Red Rubber - ANSI Pipe Flange Ring Gaskets
NSR Gaskets for various applications including industrial sealing solutions. These gaskets are suitable for service with ANSI 150# rated flanged connections and ANSI 300# rated flanged connections. Flange gaskets are used to seal and prevent leakage, absorb vibration, etc., around a pipe or piping fitting.
Filter Options
Available Options
| # | Flange Size | Inner Diameter | Outer Diameter | Thickness | Price | Add to Cart |
|---|---|---|---|---|---|---|
| 150 | 1 | 1-5/16 | 2-5/8 | 1/8 | $0.72 | |
| 150 | 2 | 2-3/8 | 4-1/8 | 1/8 | $1.11 | |
| 150 | 3 | 3-1/2 | 5-3/8 | 1/8 | $1.45 | |
| 150 | 4 | 4-1/2 | 6-7/8 | 1/8 | $2.03 | |
| 150 | 5 | 5-9/16 | 7-3/4 | 1/8 | $2.22 | |
| 150 | 6 | 6-5/8 | 8-3/4 | 1/8 | $2.73 | |
| 150 | 8 | 8-5/8 | 11 | 1/8 | $3.93 | |
| 150 | 10 | 10-3/4 | 13-3/8 | 1/8 | $6.11 | |
| 150 | 12 | 12-3/4 | 16-1/8 | 1/8 | $8.08 | |
| 300 | 1 | 1-5/16 | 2-7/8 | 1/8 | $0.85 | |
| 300 | 2 | 2-3/8 | 4-3/8 | 1/8 | $1.14 | |
| 300 | 3 | 3-1/2 | 5-7/8 | 1/8 | $1.54 | |
| 300 | 4 | 4-1/2 | 7-1/8 | 1/8 | $2.08 | |
| 300 | 5 | 5-9/16 | 8-1/2 | 1/8 | $2.67 | |
| 300 | 6 | 6-5/8 | 9-7/8 | 1/8 | $3.60 | |
| 300 | 8 | 8-5/8 | 12-1/8 | 1/8 | $5.59 | |
| 300 | 10 | 10-3/4 | 14-1/4 | 1/8 | $7.52 | |
| 300 | 12 | 12-3/4 | 16-5/8 | 1/8 | $8.33 |
| Types |
|
| Thickness |
|
| Compliance |
ANSI 16.5
|
