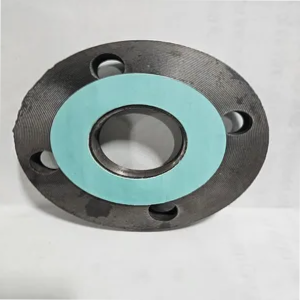

Hi-Temp AFC - ANSI Pipe Flange Ring Gaskets

Hi-Temp AFC - ANSI Pipe Flange Ring Gaskets

NSR Gaskets for various applications including industrial sealing solutions. These gaskets are suitable for service with ANSI 150# rated flanged connections and ANSI 300# rated flanged connections. Flange gaskets are used to seal and prevent leakage, absorb vibration, etc., around a pipe or piping fitting.

Filter Options

Available Options

# Flange Size Inner Diameter Outer Diameter Thickness Price Add to Cart
150 1 1-5/16 2-5/8 1/16 $0.76
150 2 2-3/8 4-1/8 1/16 $1.63
150 3 3-1/2 5-3/8 1/16 $2.40
150 4 4-1/2 6-7/8 1/16 $3.67
150 5 5-9/16 7-3/4 1/16 $3.78
150 6 6-5/8 8-3/4 1/16 $5.27
150 8 8-5/8 11 1/16 $7.54
150 10 10-3/4 13-3/8 1/16 $10.27
150 12 12-3/4 16-1/8 1/16 $15.81
300 1 1-5/16 2-7/8 1/16 $0.87
300 2 2-3/8 4-3/8 1/16 $1.96
300 3 3-1/2 5-7/8 1/16 $2.55
300 4 4-1/2 7-1/8 1/16 $4.15
300 5 5-9/16 8-1/2 1/16 $5.34
300 6 6-5/8 9-7/8 1/16 $8.68
300 8 8-5/8 12-1/8 1/16 $11.75
300 10 10-3/4 14-1/4 1/16 $14.16
300 12 12-3/4 16-5/8 1/16 $18.42
150 1 1-5/16 2-5/8 1/8 $1.52
150 2 2-3/8 4-1/8 1/8 $3.27
150 3 3-1/2 5-3/8 1/8 $4.80
150 4 4-1/2 6-7/8 1/8 $7.34
150 5 5-9/16 7-3/4 1/8 $7.56
150 6 6-5/8 8-3/4 1/8 $10.54
150 8 8-5/8 11 1/8 $15.09
150 10 10-3/4 13-3/8 1/8 $20.36
150 12 12-3/4 16-1/8 1/8 $31.54
300 1 1-5/16 2-7/8 1/8 $1.74
300 2 2-3/8 4-3/8 1/8 $3.92
300 3 3-1/2 5-7/8 1/8 $5.10
300 4 4-1/2 7-1/8 1/8 $8.30
300 5 5-9/16 8-1/2 1/8 $10.69
300 6 6-5/8 9-7/8 1/8 $17.35
300 8 8-5/8 12-1/8 1/8 $23.50
300 10 10-3/4 14-1/4 1/8 $28.30
300 12 12-3/4 16-5/8 1/8 $36.75
Types
  • Ring Flange Gaskets
  • 150# or 300#
Thickness
  • 1/16 inch
  • 1/8 inch
Compliance
ANSI 16.5
