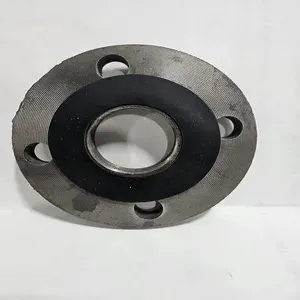

EPDM - ANSI Pipe Flange Ring Gaskets

EPDM - ANSI Pipe Flange Ring Gaskets

NSR Gaskets for various applications including industrial sealing solutions. These gaskets are suitable for service with ANSI 150# rated flanged connections and ANSI 300# rated flanged connections. Flange gaskets are used to seal and prevent leakage, absorb vibration, etc., around a pipe or piping fitting.

Filter Options

Available Options

# Flange Size Inner Diameter Outer Diameter Thickness Price Add to Cart
150 1 1-5/16 2-5/8 1/16 $0.76
150 2 2-3/8 4-1/8 1/16 $0.96
150 3 3-1/2 5-3/8 1/16 $1.27
150 4 4-1/2 6-7/8 1/16 $1.71
150 5 5-9/16 7-3/4 1/16 $1.85
150 6 6-5/8 8-3/4 1/16 $2.26
150 8 8-5/8 11 1/16 $3.20
150 10 10-3/4 13-3/8 1/16 $4.90
150 12 12-3/4 16-1/8 1/16 $8.16
300 1 1-5/16 2-7/8 1/16 $0.79
300 2 2-3/8 4-3/8 1/16 $1.02
300 3 3-1/2 5-7/8 1/16 $1.33
300 4 4-1/2 7-1/8 1/16 $1.75
300 5 5-9/16 8-1/2 1/16 $2.21
300 6 6-5/8 9-7/8 1/16 $2.94
300 8 8-5/8 12-1/8 1/16 $4.50
300 10 10-3/4 14-1/4 1/16 $5.18
300 12 12-3/4 16-5/8 1/16 $8.43
150 1 1-5/16 2-5/8 1/8 $0.80
150 2 2-3/8 4-1/8 1/8 $1.05
150 3 3-1/2 5-3/8 1/8 $1.94
150 4 4-1/2 6-7/8 1/8 $2.82
150 5 5-9/16 7-3/4 1/8 $3.10
150 6 6-5/8 8-3/4 1/8 $3.92
150 8 8-5/8 11 1/8 $5.80
150 10 10-3/4 13-3/8 1/8 $9.18
150 12 12-3/4 16-1/8 1/8 $15.69
300 1 1-5/16 2-7/8 1/8 $0.99
300 2 2-3/8 4-3/8 1/8 $1.44
300 3 3-1/2 5-7/8 1/8 $2.06
300 4 4-1/2 7-1/8 1/8 $2.90
300 5 5-9/16 8-1/2 1/8 $3.83
300 6 6-5/8 9-7/8 1/8 $5.28
300 8 8-5/8 12-1/8 1/8 $8.40
300 10 10-3/4 14-1/4 1/8 $9.75
300 12 12-3/4 16-5/8 1/8 $16.26
Types
  • Ring Flange Gaskets
  • 150# or 300#
Thickness
  • 1/16 inch
  • 1/8 inch
Compliance
ANSI 16.5
