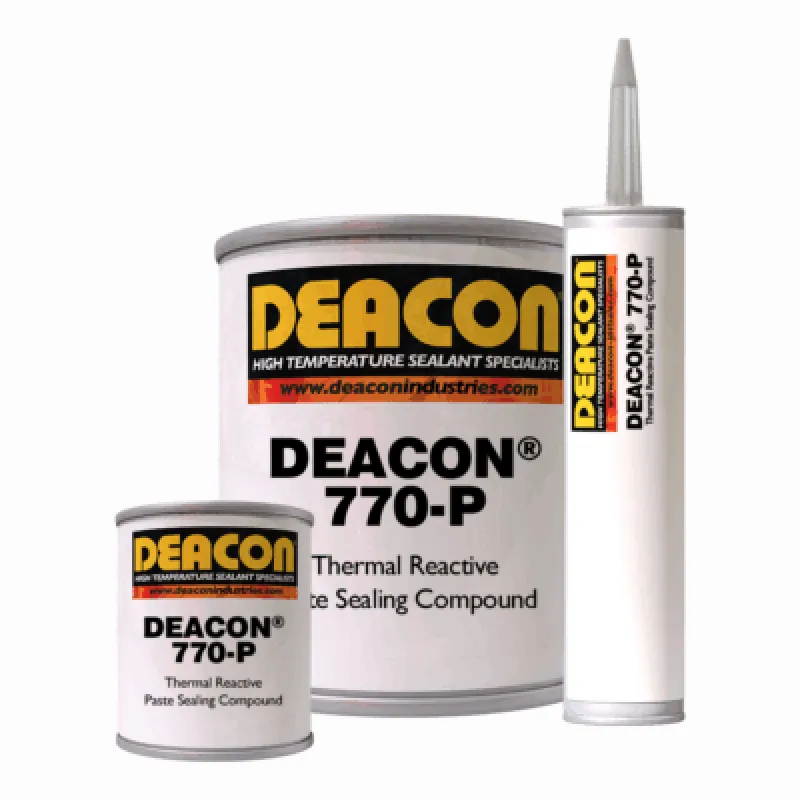

Deacon 770-P Paste Sealant

Deacon 770-P Paste Sealant

DEACON® 770-P is a thermal reactive paste sealing compound designed for high-temperature and high-pressure applications. It serves as a flange or thread sealant and can be used as a dressing on traditional fabricated gaskets. Unaffected by thermal cycling, 770-P will not cement joints together or interfere with future repairs. In the presence of heat, 770-P forms a mechanical-type seal against steam, oils, solvents, hydrocarbons, and various chemicals. Ideal for NPT pipe fittings.

Available Options

Container Size Weight Price Add to Cart
1 GALLON CAN - PASTE 8 lbs $398.83
1 PINT CAN - PASTE 1 lb $100.00
1 QUART CAN - PASTE 2 lbs $138.82
Base Material
Resin
Instructions
Apply DEACON 770-P to threads, flanges, or gasket surfaces. It expands and cures in the presence of heat to form a mechanical-type seal.
Service Rating
200°F (93°C) to 950°F (510°C), up to 11,000 psi (758 Bar)
Benefits
  • Fills surface defects
  • High chemical resistance
  • Compatibility with thermal cycling
  • Will not cement joints together
  • Achieves mechanical seal with heat
  • Facilitates easy future repairs
  • High pressure tolerance
  • High temperature tolerance
Applications
  • threads
  • flange sealant
  • gasket dressing
  • metal-to-metal joints
  • high-pressure steam
  • oils
  • solvents
  • hydrocarbons
  • chemicals
Material
Thermal reactive paste sealing compound
